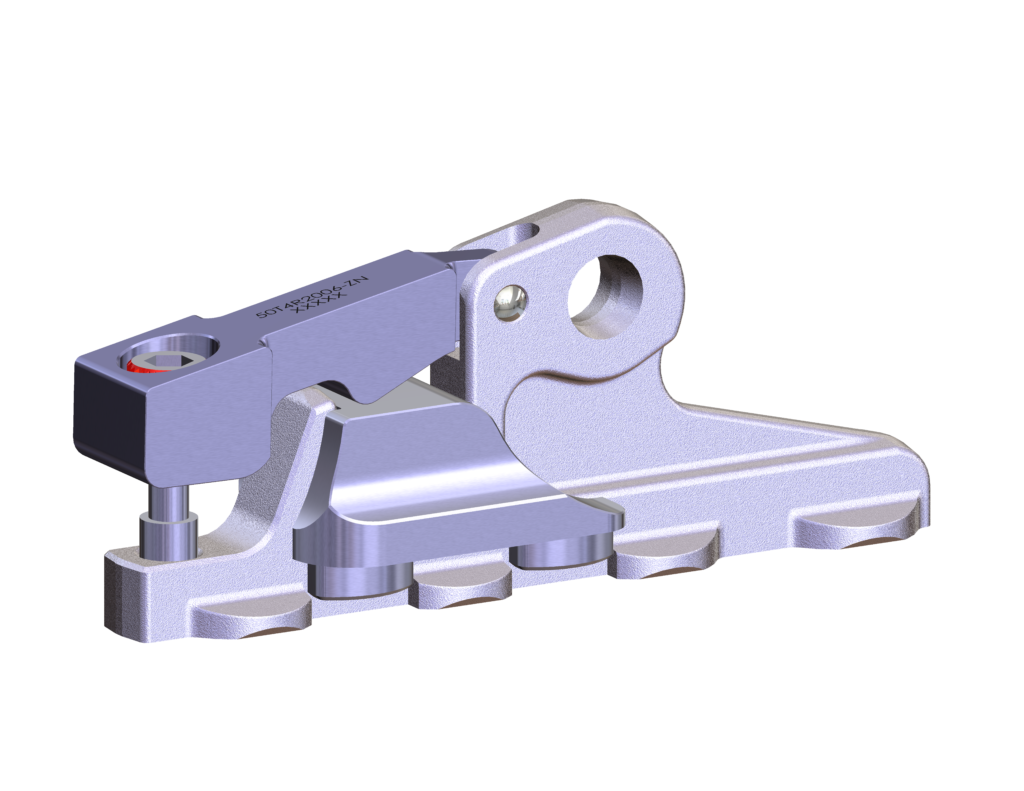

50T4R2006-ZN-view type

50T 4R2 006

PDF
icone videopng-18
ICONES-prod-2
Rear quadruple stud fitting
ICONES-weight
229 grs
50T4R2006-ZN-view type

Features

ICONES-caracs

Characteristics

Fitting class                       Torqued
Number of studs              4
Shear Plunger                 Yes
Fxz (rear) or Fz (front)     TBD

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-check

A320

_ICONES-check

A330

_ICONES-check

A350

_ICONES-nocheck-vide

A380

_ICONES-check

B737

_ICONES-check

B747

_ICONES-check

B767

_ICONES-nocheck-vide

B777

Components

Material

Treatment

Body

Stainless steel 17-4 Ph per ASTM A693

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Steel 42CrMo4 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Lever

Steel 42CrMo4 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Dimensions

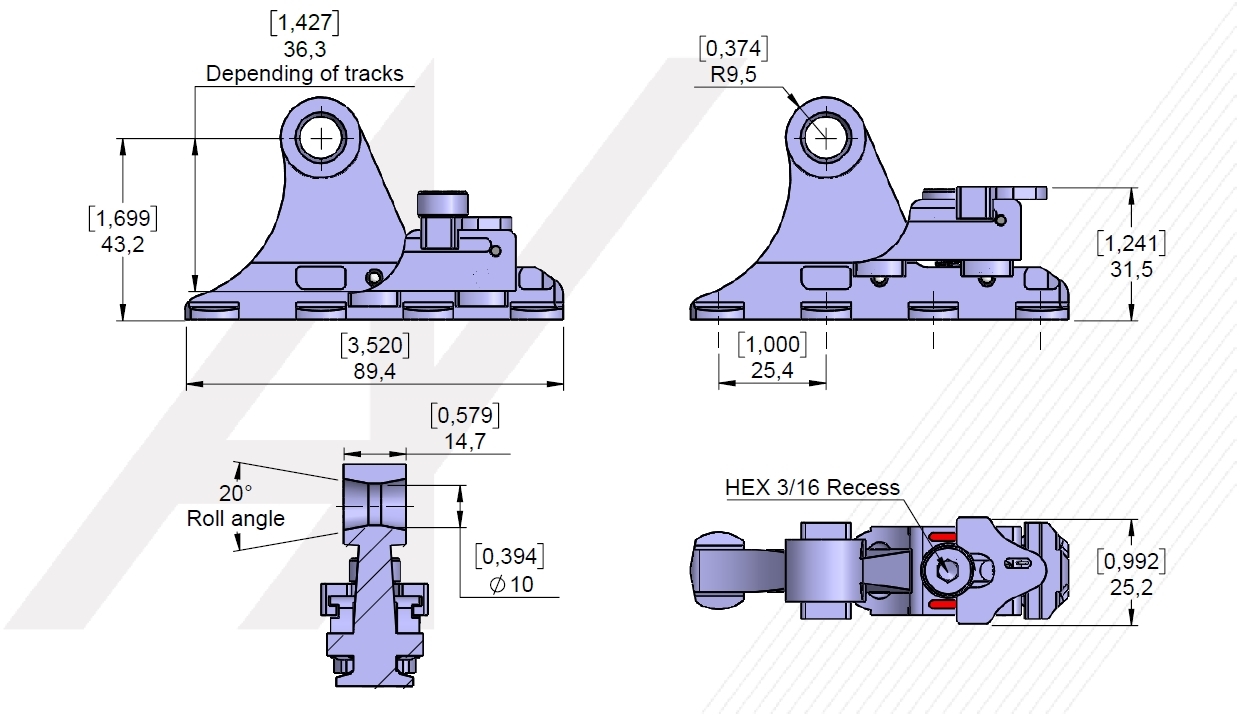

Data sheet 50T4R2006-ZN
[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-check
Positive engagement
_ICONES-check
Secured locking
_ICONES-check
Offset
_ICONES-check
Captive screw

50T4R2006 Read More »

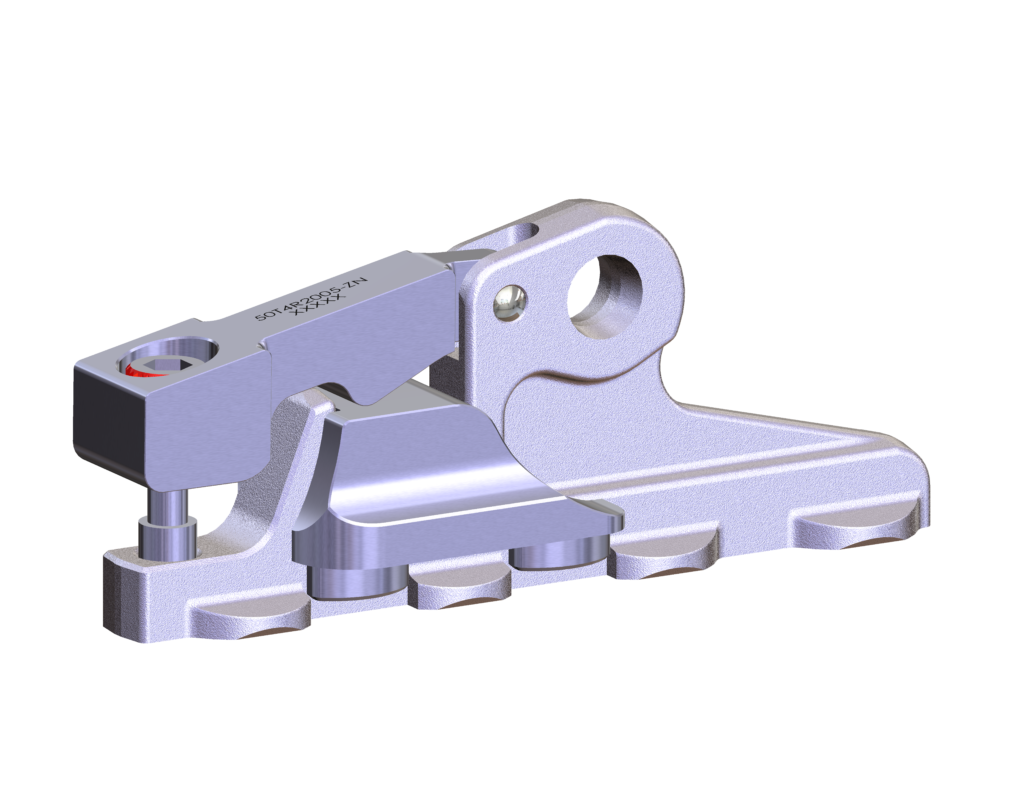

50T4R2005-ZN-view type

50T 4R2 005

PDF
icone videopng-18
ICONES-prod-2
Rear quadruple stud fitting
ICONES-weight
228 grs
50T4R2005-ZN-view type

Features

ICONES-caracs

Characteristics

Fitting class                       Torqued
Number of studs              4
Shear Plunger                 Yes
Fxz (rear) or Fz (front)     TBD

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-nocheck-vide

A320

_ICONES-nocheck-vide

A330

_ICONES-nocheck-vide

A350

_ICONES-nocheck-vide

A380

_ICONES-check

B737

_ICONES-check

B747

_ICONES-check

B767

_ICONES-nocheck-vide

B777

Components

Material

Treatment

Body

Stainless steel 17-4 Ph per ASTM A693

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Steel 42CrMo4 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Lever

Steel 42CrMo4 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Dimensions

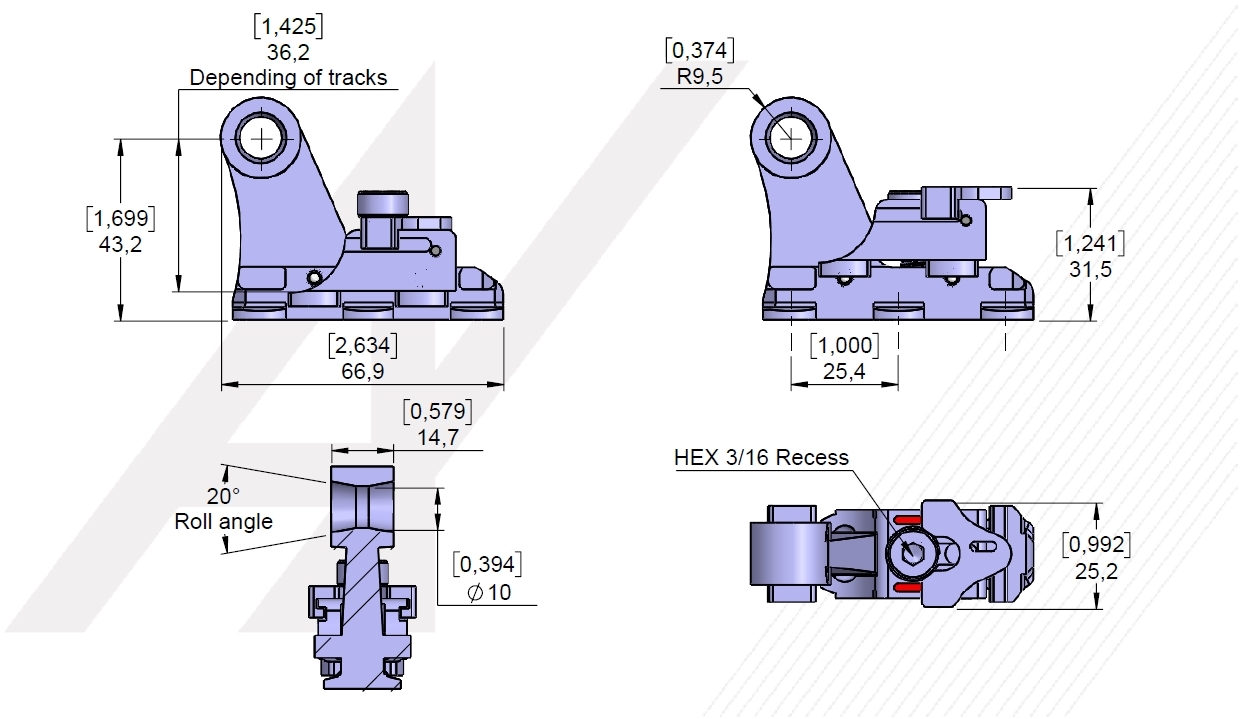

Data sheet 50T4R2005-ZN
[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-check
Positive engagement
_ICONES-check
Secured locking
_ICONES-check
Offset
_ICONES-check
Captive screw

50T4R2005 Read More »

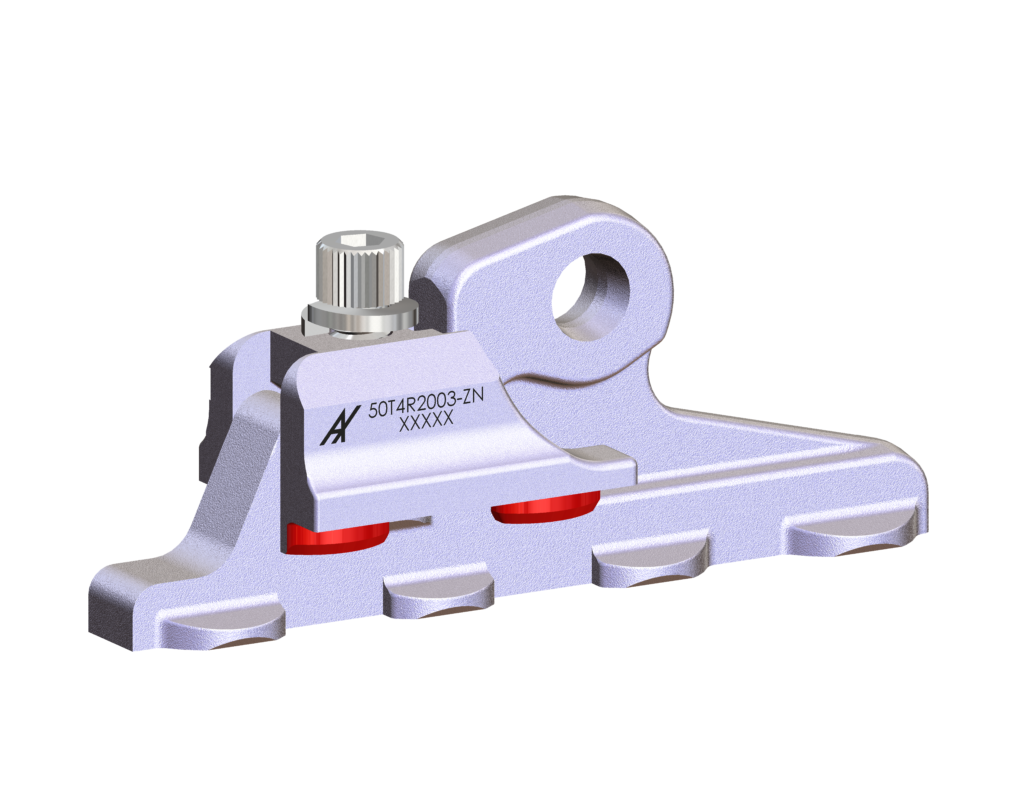

50T4R2003-ZN-view type

50T 4R2 003

PDF
icone videopng-18
ICONES-prod-2
Rear quadruple stud fitting
ICONES-weight
191 grs
50T4R2003-ZN-view type

Features

ICONES-caracs

Characteristics

Fitting class                       Torqued
Number of studs              4
Shear Plunger                 Yes
Fxz (rear) or Fz (front)    > 75 KN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-check

A320

_ICONES-check

A330

_ICONES-nocheck-vide

A350

_ICONES-nocheck-vide

A380

_ICONES-check

B737

_ICONES-check

B747

_ICONES-check

B767

_ICONES-nocheck-vide

B777

Components

Material

Treatment

Body

Stainless steel 17-4 Ph per ASTM A693

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Stainless steel 17-4 Ph per AMS 5355

Zinc Nickel Type II Grade B per AMS 2417

Lever

–

–

Dimensions

Data sheet 50T4R2003-ZN
[ units in inch ]

Technical data

_ICONES-check
Safetyindicator
_ICONES-check
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-nocheck-vide
Positive engagement
_ICONES-nocheck-vide
Secured locking
_ICONES-check
Offset
_ICONES-nocheck-vide
Captive screw

50T4R2003 Read More »

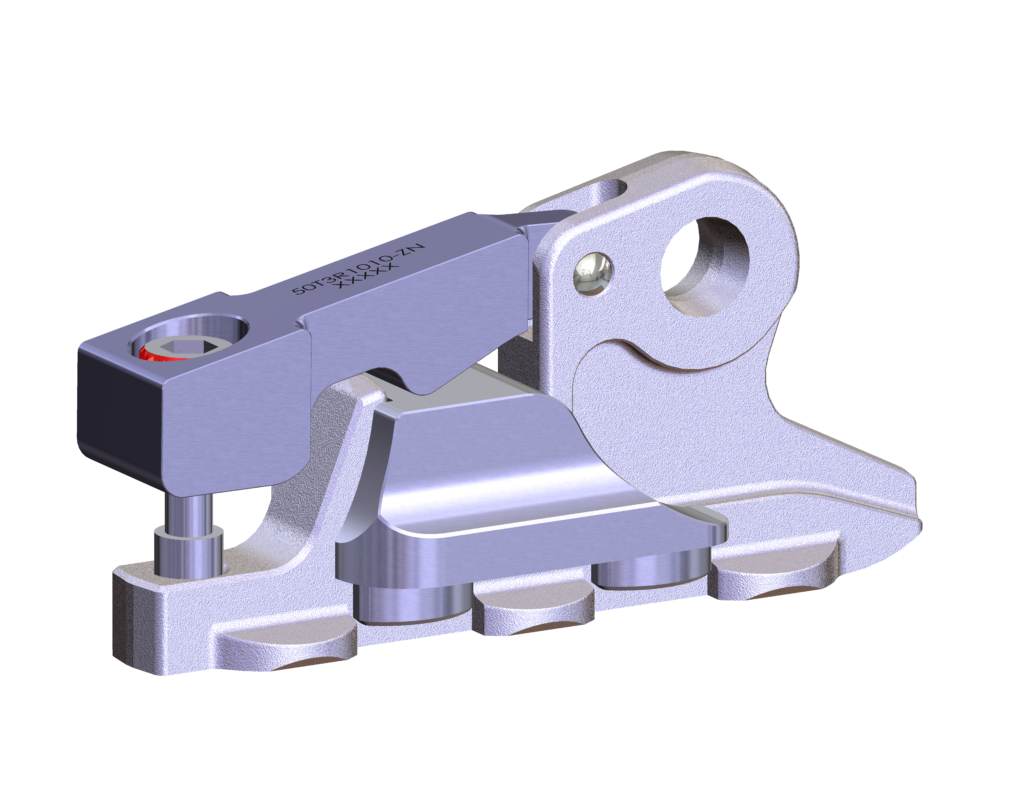

50T3R1010-ZN-view type

50T 3R1 010

PDF
icone videopng-18
ICONES-prod-2
Rear triple stud fitting
ICONES-weight
208 grs
50T3R1010-ZN-view type

Features

ICONES-caracs

Characteristics

Fitting class                       Torqued
Number of studs              3
Shear Plunger                 Yes
Fxz (rear) or Fz (front)     > 75 KN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-check

A320

_ICONES-check

A330

_ICONES-check

A350

_ICONES-nocheck-vide

A380

_ICONES-check

B737

_ICONES-check

B747

_ICONES-check

B767

_ICONES-nocheck-vide

B777

Components

Material

Treatment

Body

Steel 4140 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Steel 42CrMo4 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Lever

Steel 42CrMo4 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Dimensions

Data Sheet 50T3R1010-ZN
[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-check
Positive engagement
_ICONES-check
Secured locking
_ICONES-check
Offset
_ICONES-check
Captive screw

50T3R1010 Read More »

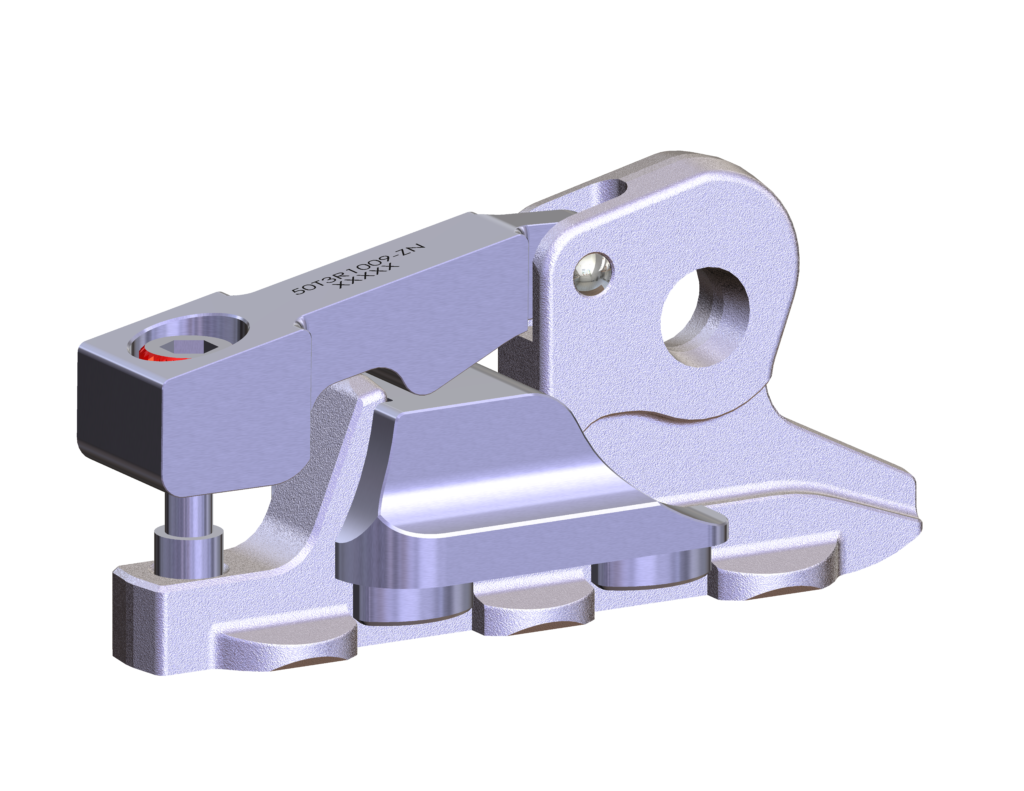

50T3R1009-ZN-view type

50T 3R1 009

PDF
icone videopng-18
ICONES-prod-2
Rear triple stud fitting
ICONES-weight
212 grs
50T3R1009-ZN-view type

Features

ICONES-caracs

Characteristics

Fitting class                       Torqued
Number of studs              3
Shear Plunger                 Yes
Fxz (rear) or Fz (front)     > 70 kN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-nocheck-vide

A320

_ICONES-nocheck-vide

A330

_ICONES-nocheck-vide

A350

_ICONES-nocheck-vide

A380

_ICONES-check

B737

_ICONES-check

B747

_ICONES-check

B767

_ICONES-check

B777

Components

Material

Treatment

Body

Steel 4140 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Steel 42CrMo4 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Lever

Steel 42CrMo4 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Dimensions

Data Sheet 50T3R1009-ZN
[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-check
Positive engagement
_ICONES-check
Secured locking
_ICONES-check
Offset
_ICONES-check
Captive screw

50T3R1009 Read More »

50T3R1008-ZN-view type

50T 3R1 008

PDF
icone videopng-18
ICONES-prod-2
Rear triple stud fitting
ICONES-weight
138 grs
50T3R1001-ZN-view type

Features

ICONES-caracs

Characteristics

Fitting class                      Torqued
Number of studs             3
Shear Plunger                 Yes
Fxz (rear) or Fz (front)    > 60 kN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-check

A320

_ICONES-check

A330

_ICONES-nocheck-vide

A350

_ICONES-nocheck-vide

A380

_ICONES-check

B737

_ICONES-check

B747

_ICONES-check

B767

_ICONES-nocheck-vide

B777

Components

Material

Treatment

Body

Steel 4140 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Steel 42CrMo4 per EN 10293

Zinc Nickel Type II Grade B per AMS 2417

Lever

–

–

Dimensions

Data sheet 50T3R1008-ZN
[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-check
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-nocheck-vide
Positive engagement
_ICONES-nocheck-vide
Secured locking
_ICONES-check
Offset
_ICONES-nocheck-vide
Captive screw

50T3R1008 Read More »

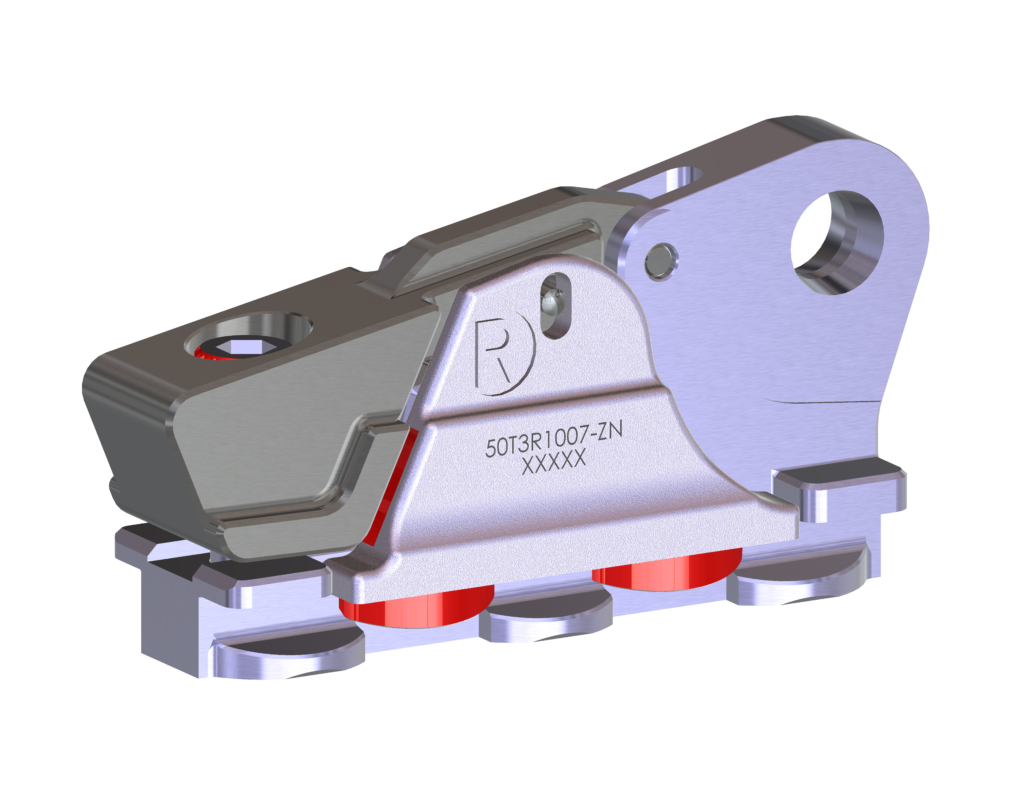

50T3R1007-ZN-view type

50T 3R1 007

PDF
icone videopng-18
ICONES-prod-2
Rear triple stud fitting
ICONES-weight
229 grs
50T3R1007-ZN-view type

Features

ICONES-caracs

Characteristics

Fitting class                      Torqued
Number of studs             3
Shear Plunger                 Yes
Fxz (rear) or Fz (front)    > 70 KN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-nocheck-vide

A320

_ICONES-nocheck-vide

A330

_ICONES-nocheck-vide

A350

_ICONES-check

A380

_ICONES-nocheck-vide

B737

_ICONES-nocheck-vide

B747

_ICONES-nocheck-vide

B777

Components

Material

Treatment

Body

Steel 42CrMo4 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Stainless steel 17-4 Ph per AMS 5355

Zinc Nickel Type II Grade B per AMS 2417

Lever

Aluminium 7075-T651

Hard Anodization Type III Class 1 per MIL-A-8625

Dimensions

[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-check
Positive engagement
_ICONES-check
Secured locking
_ICONES-check
Offset
_ICONES-check
Captive screw

50T3R1007 Read More »

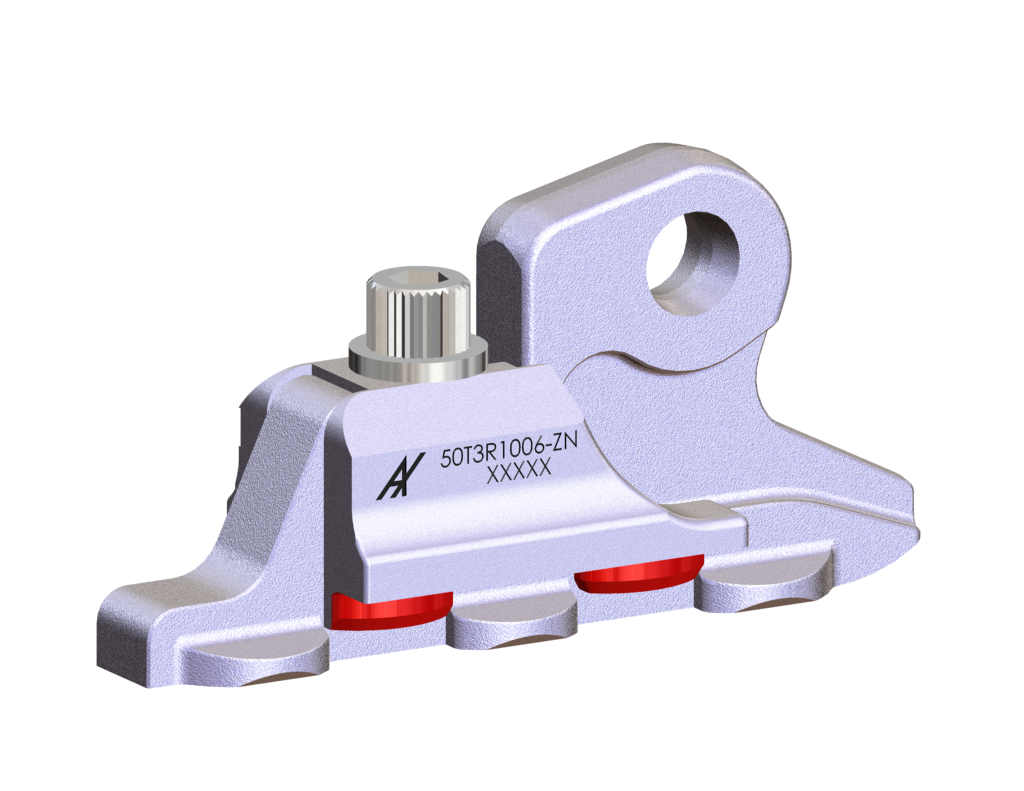

50T3R1006-ZN-view type

50T 3R1 006

PDF
icone videopng-18
ICONES-prod-2
Fear triple stud fitting
ICONES-weight
174 grs
50T3R1006-ZN-view type

Features

ICONES-caracs

Characteristics

Fitting class                       Torqued
Number of studs              3
Shear Plunger                 Yes
Fxz (rear) or Fz (front)     TBD

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-check

A320

_ICONES-check

A330

_ICONES-check

A350

_ICONES-nocheck-vide

A380

_ICONES-check

B737

_ICONES-check

B747

_ICONES-check

B767

_ICONES-nocheck-vide

B777

Components

Material

Treatment

Body

Steel 4140 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Steel 42CrMo4 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Lever

–

–

Dimensions

[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-nocheck-vide
Positive engagement
_ICONES-nocheck-vide
Secured locking
_ICONES-check
Offset
_ICONES-nocheck-vide
Captive screw

50T3R1006 Read More »

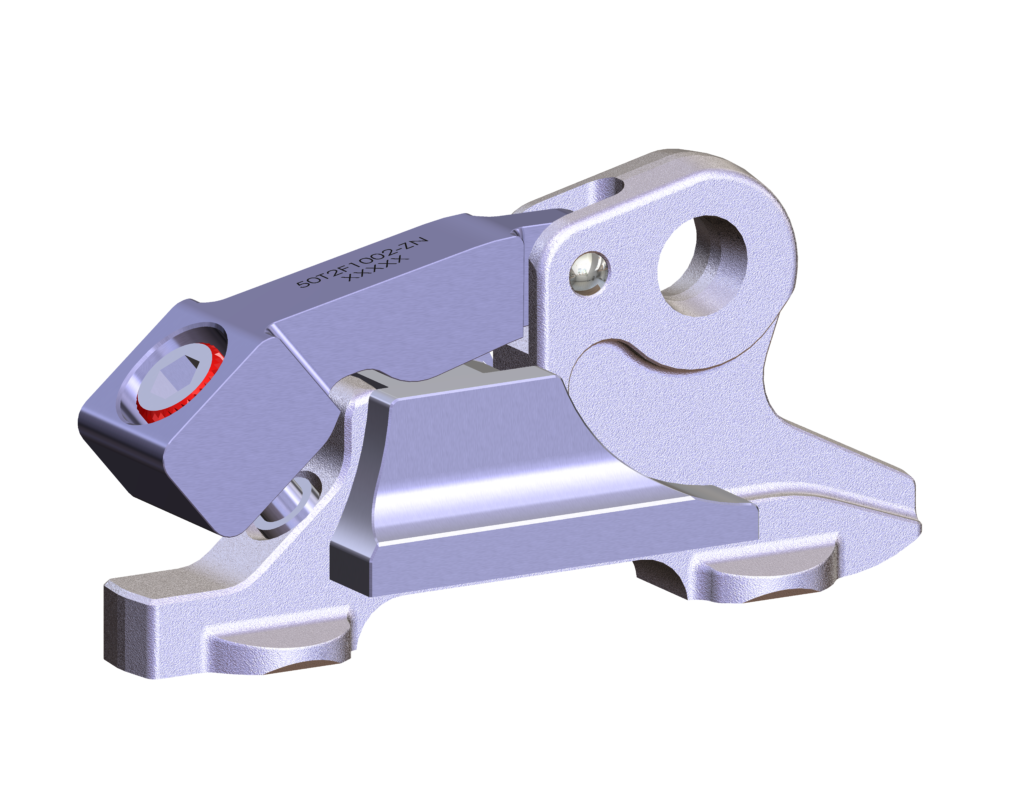

50T2F1002-ZN-view type

50T 2F1 002

PDF
icone videopng-18
ICONES-prod-2
Front double stud fitting
ICONES-weight
193 grs
50T2F1002-ZN-view type

Features

ICONES-caracs

Characteristics

Fitting class                       Torqued
Number of studs              2
Shear Plunger                 No
Fxz (rear) or Fz (front)     > 50 kN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-check

A320

_ICONES-check

A330

_ICONES-check

A350

_ICONES-nocheck-vide

A380

_ICONES-check

B737

_ICONES-check

B747

_ICONES-check

B767

_ICONES-nocheck-vide

B777

Components

Material

Treatment

Body

Steel 4140 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Steel 42CrMo4 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Lever

Steel 42CrMo4 per AMS 6349

Zinc Nickel Type II Grade B per AMS 2417

Dimensions

Data sheet 50T2F1002-ZN
[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-nocheck-vide
Green
_ICONES-nocheck-vide
Tool-less
_ICONES-nocheck-vide
Quick release
_ICONES-nocheck-vide
Positive engagement
_ICONES-nocheck-vide
Secured locking
_ICONES-check
Offset
_ICONES-check
Captive screw

50T2F1002 Read More »

505170909-view type

505 170 909

PDF
icone videopng-18
ICONES-prod-2

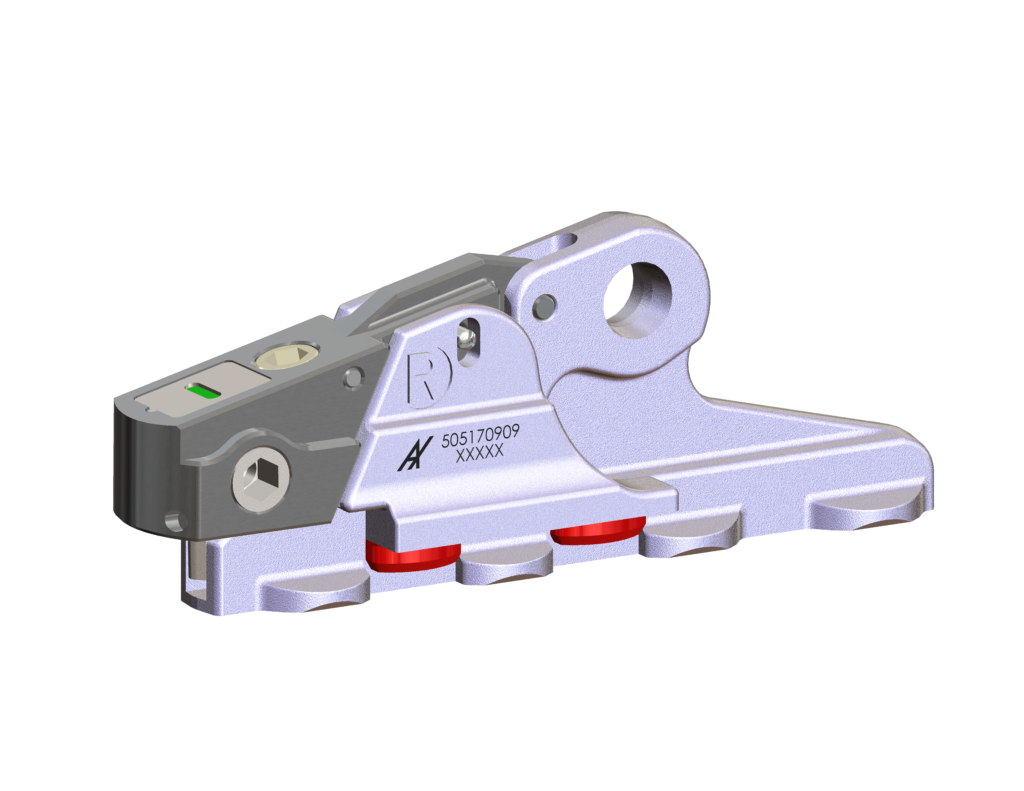

Rear quadruple stud fitting
ICONES-weight
233 grs
505170909-view type

Features

ICONES-caracs

Characteristics

Fitting class                       Quick Change
Number of studs              4
Shear Plunger                 Yes
Fxz (rear) or Fz (front)     > 75 kN

ICONES-aircrafts

Aircrafts

Airbus
Boeing
_ICONES-check

A320

_ICONES-check

A330

_ICONES-check

A350

_ICONES-nocheck-vide

A380

_ICONES-check

B737

_ICONES-check

B747

_ICONES-check

B767

_ICONES-nocheck-vide

B777

Components

Material

Treatment

Body

Stainless steel 17-4 Ph per ASTM A693

Zinc Nickel Type II Grade B per AMS 2417

Plunger

Stainless steel 17-4 Ph per ASTM A693

Zinc Nickel Type II Grade B per AMS 2417

Lever

Aluminum 7075-T651

Hard Anodization Type III Class 1 per MIL-A-8625

Dimensions

[ units in inch ]

Technical data

_ICONES-check
Safety indicator
_ICONES-check
Red
_ICONES-check
Green
_ICONES-check
Tool-less
_ICONES-check
Quick release
_ICONES-check
Positive engagement
_ICONES-check
Secured locking
_ICONES-check
Offset
_ICONES-nocheck-vide
Captive screw

505170909 Read More »

Home – Company – products – download – videos – contact
ICONES-map

6 rue des Entrepreneurs
78420 Carrières-sur-Seine
France

ICONES-phone

T: +33 161 045 050
F: +33 161 040 501

Copyright © 2022 ATTAX – Design & Development by SYNTHES’3D | Legal Information
